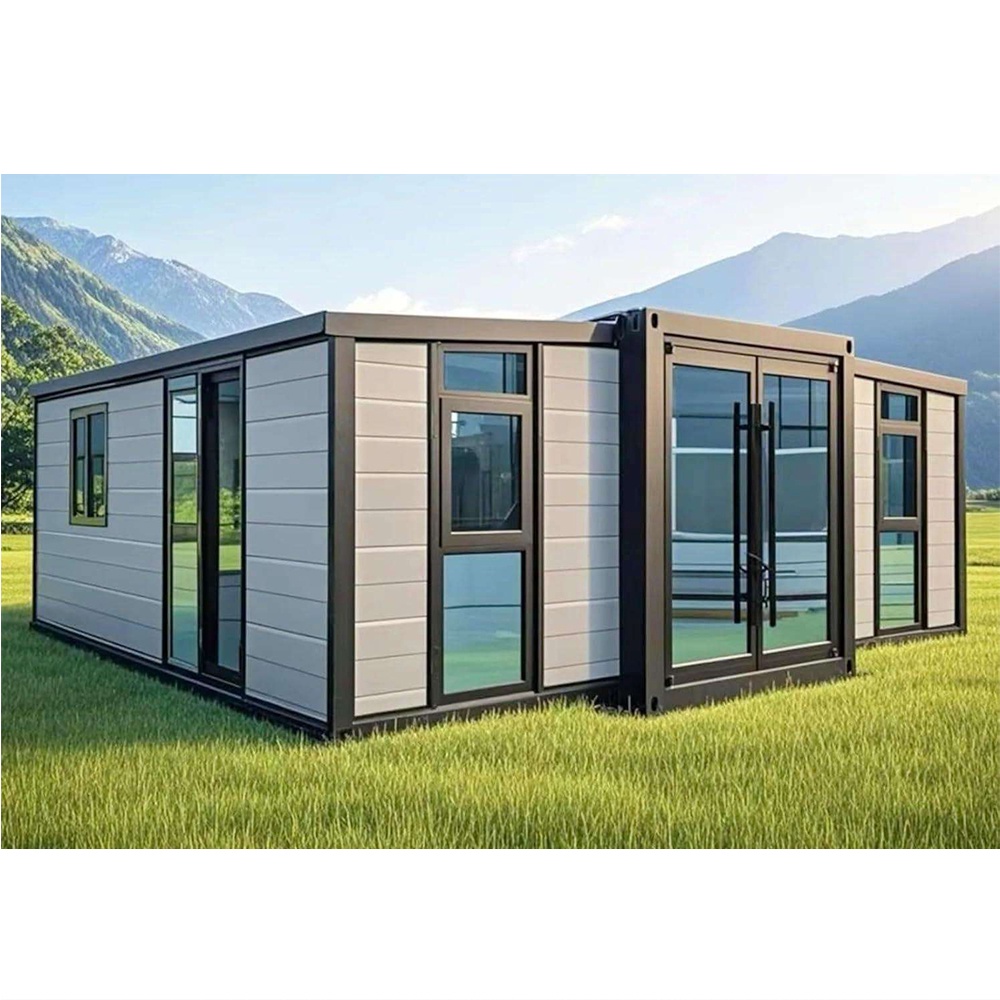

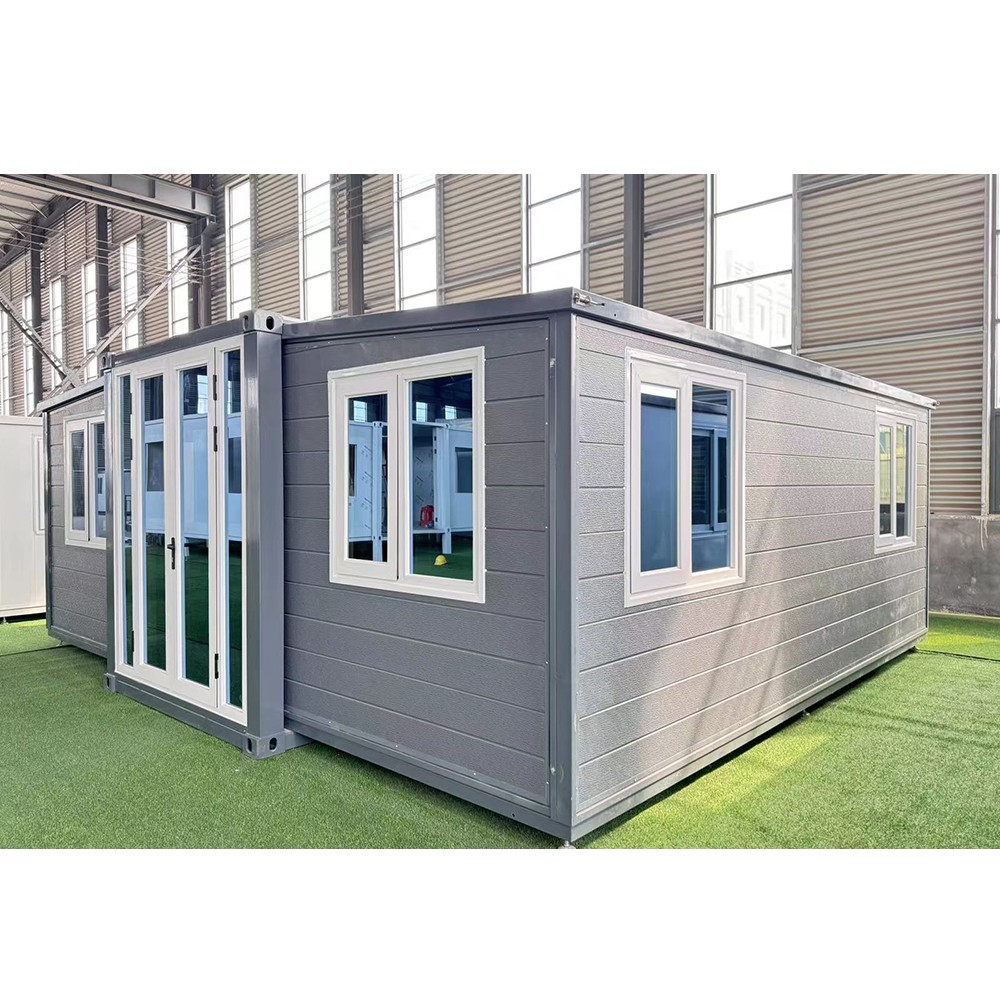

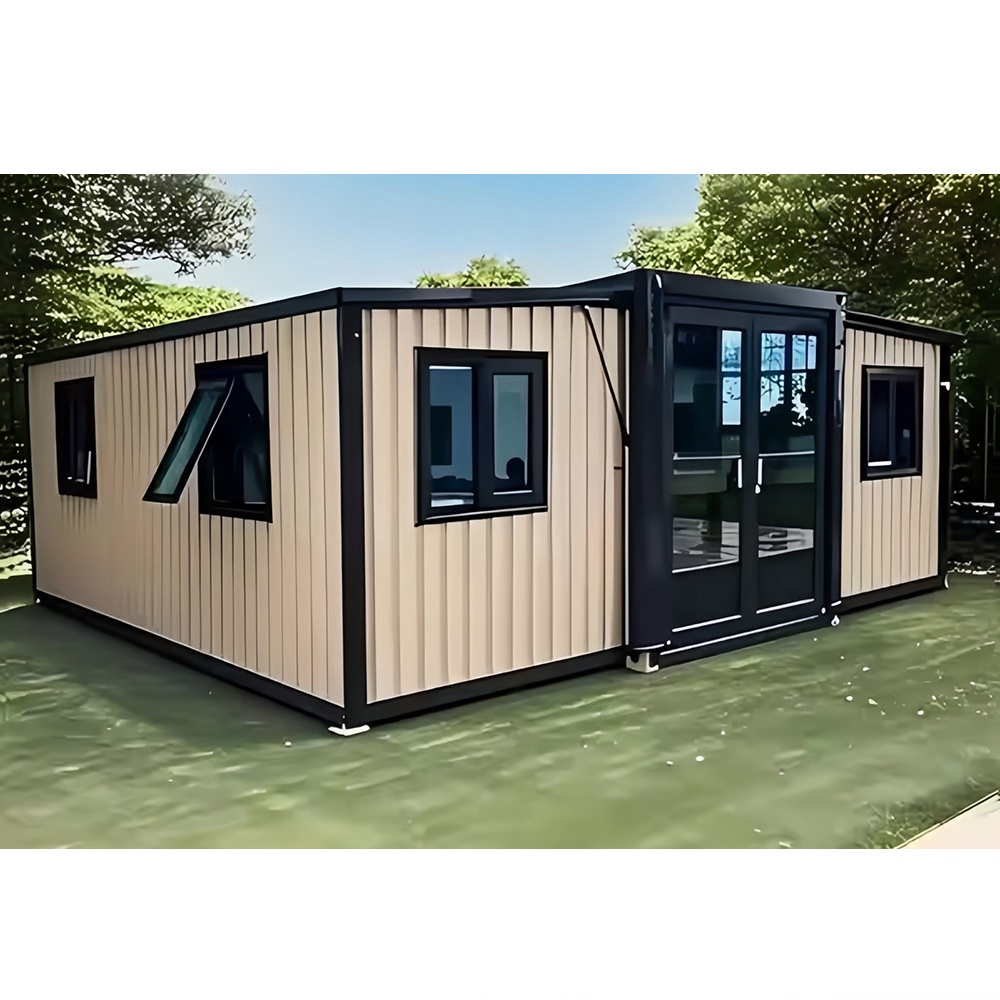

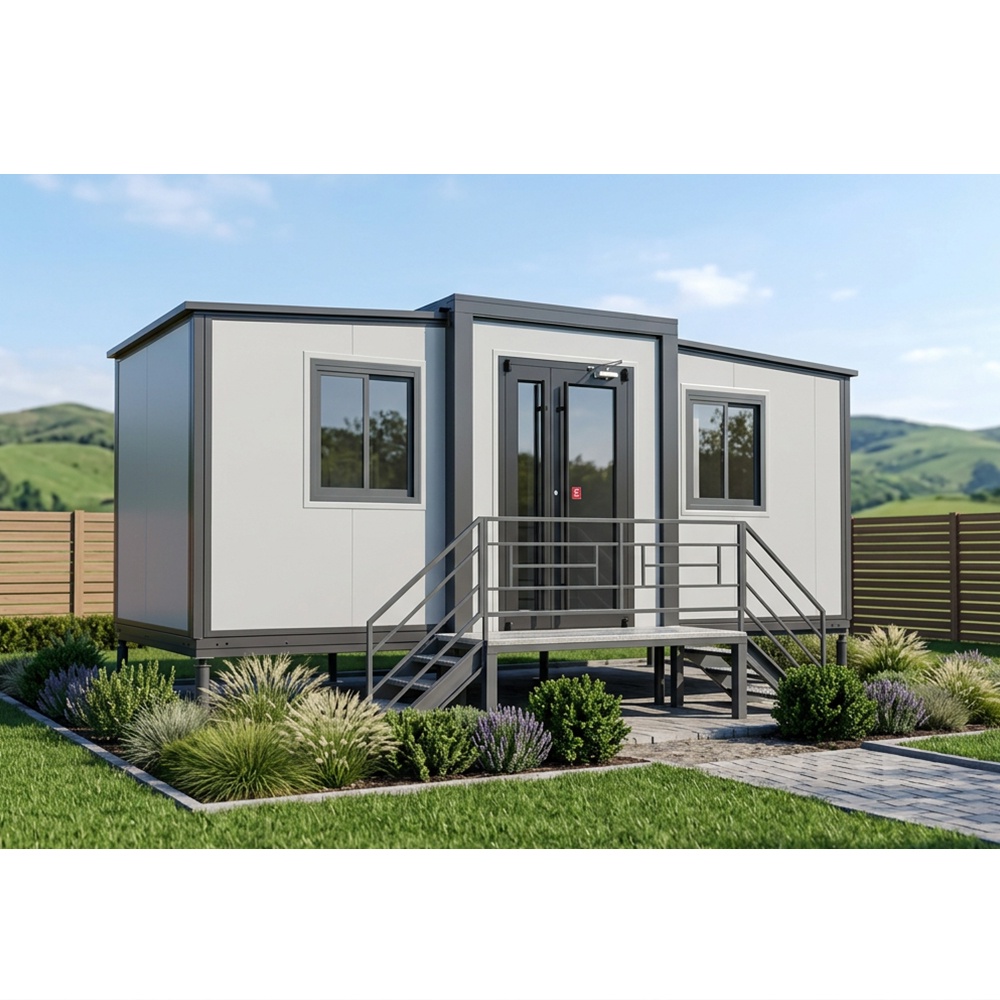

Double winged expandable house

Name: Double winged expandable house
SKU: 0

Brand Name: Huacang
FOB Port: Tianjin
Lead Time: 15 - 30 days
Country of Origin: China (mainland)

WhatsApp: 8613346223675

WhatsApp: 8615163535635

WhatsApp: 8618822024777

Email: huacang@sdhcgjg.cn

Online Message

Related Products

Product Description

Items	Double winged expandable house
Option size	Smaller:W4820L5900H2480mm
	20ft:W6320L5900H2480mm
	30ft:W6240L9000H2480mm
	40ft:W6240L11800H2480mm
Main material	Galvanized steel structure with sandwich wall panel and doors, windows, etc.
Weight	2000-5500 kgs
Color	White, blue, grey, brown, customized color, or adding colorful cladding
Steel structure	2.5 mm hot galvanized steel structure with 4mm corner casts
	(1) Floor: 18mm Mgo board in the middle and 15mm laminate board on both sides
	(2) Adding 2mm PVC flooring
	(3) 75mm rock wool ,eps sandwich panel
	(4) Galvanized steel base plate
Columns	2.5 mm hot galvanized steel structure
Wall	75mm EPS/rock woll sandwich panel, or customized PU sandwich panel
Roof	3-4mm Hot galvanized steel structure with 4 corner casts and
	(1) Galvanized steel roof covering
	(2) 50mm eps sandwich panel sandwich panel
Door	(1) Steel door
	(2) Aluminum double glass door
	(3) Cut-bridge aluminum double glass door
Window	920*920mm, double glass (1) Plastic steel window (2) Aluminum double glass window (3) Cut-bridge aluminum double glass window
Connection kits	PVC Connection kits for ceiling, floor and walls
Electricity	3C/CE/CL/SAA Standard,with breaker, lights, switch, sockets, etc
Advantage	(1) Fast installation: 2 hours/set, save labor cost
	(2) Anti-rust: all material use hot glavanized steel
	(3) Waterproof structural waterproof design
	(4) Fireproof: fire rating A grade
	(5) Simple foundation
	(6) Wind-resistant(10 grade) and anti-seismic(10 grade
	(7) Pre-installed
	(8) Suitable for living

Information Required for Quotation

Dear customer

* If you have drawings, feel free to share them with us, and we will provide a quote based on your drawings.

* If there are no reference drawings available, to ensure accurate quotation, please kindly provide the following information before quoting. Thank you for your cooperation!

1. Location:(where will be built? ) which country? which city?

2. Size:Length*width* Eave height_____mm*_____mm*____mm

3. Wind load:(max. Wind speed)_____kn/m2,_____km/h,____m/s

4. Snow load:(max. Snow height) ___kn/m2,_____mm, temperature range?

5. Anti-earthquake:_____level

6. Brick wall needed or not:lf yes, 1.2m high or 1.5m high? or other?

7. Thermal insulation If yes,EPS,fiberglass wool, rockwool, PU sandwich panels will be suggested; lf not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

8. Door quantity & size:_____units,______(width)mm*____(height)mm

9. Window quantity & size: _____units,_____(width)mm*____(height)mm

10. Crane needed or not: lf yes, _____units, max. Lifting weight___tons; Max. Lifting height _____m
